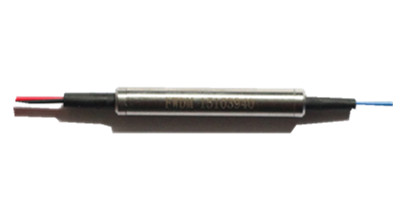

Three Port WDM Modules

  • Category: WDM Series
  • Source: Three Port WDM
  • Driver: HuiGoo Optic Co.,Limited
  • Housing: Three Port WDM

Inquiry now

or

Send email

We highly appreciate your feedback.
TEL: +86-013510362835
E-mail: sales@huigoooptic.com

Three Port WDM

1.Description:

FTTH is a single Fiber To Home directly. Technical characteristics of the FTTH is the not only provide greater bandwidth, and enhance the network of data format, rate, wavelength and protocol transparency, loosened the requirements for environmental conditions and power supply, etc, to simplify the maintenance and installation.


2.Features:

Low Insertion Loss

Broad Operating Band

High Channel Isolation

High Reliability and Stability

3.Applications:

EDFA

FTTH

CATV System

WDM System




4.Specifications:

Parameter

Mux

Demux

Operating Wavelength (nm)

1470 ~1610 or 1471 ~1611

Center Wavelength Accuracy(nm)

±0.5

Channel Spacing((GHz))

20

Min.Channel Bandwidth(nm)

±7

Transmission  IL (dB)

> 0.6

Reflection IL (dB)

 > 0.4

Channel Corrugated (dB)

> 0.3

Isolation(dB)

Adjacent Channel

N/A

>30

Non-Adjacent Channel

N/A

>40

Reflection Isolation(dB)

≧12

IL Temperature Sensitivity(dB/℃)

≦0.005

Wavelength Temperature Shifting(nm/℃)

≦0.002

Polarization Dependent Loss(dB)

≦0.1

Polarization Mode Dispersion(ps)

≦0.1

Directivity(dB)

≧50

RL(dB)

≧45

Power Handling (mW)

300

Operating Temperature(℃)

0 ~ +70

Storage Temperature(℃)

-40 ~ +85

Dimension(mm)

ф5.5×L34(L38 for 900um Jacket)



5.Order Information:

SCWDM

ITU Channel

Fiber Type

Fiber Length

Connector

M=Mux
D=Demux

510=1510nm   530=1530nm   550=1550nm   570=1570nm

1=Bare Fiber
2=900um Jacket
3=3mm Cable

1=1 Meter
2=2 Meter



Three Port WDM
