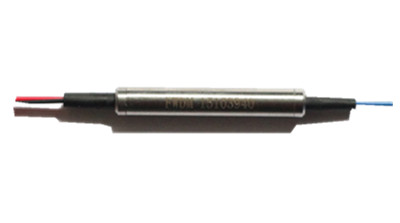

Polarization Maintaining Isolator WDM
1．Description：
The PMIWDM is a hybrid device that has functions of WDM and isolator in a single compact packaege.The PMIWDM IS characterized with low insertion loss,high extinction ratio,high isolation,high return loss and excellent enviromental stability and reliability.It is ideal choice for amplifier application to combine signal and pump wavelength with stable signal isolation.
2．Features：
High Isolation
Low insertion loss
High Return Loss
High Extinction Ratio
Excellent Envionment Stability and Reliability.
3．Applications：
Fiber Laser
Fiber Sensor
Optical Amplifier
4．Specifications：
Parameter | Single Stage | Dual Stage | Single Stage | Dual Stage |
Operating Wavelength (nm) | T1064±5/R980±5 | T1530~1580/R980±15 | ||
Isolation (dB) | ≧30 | ≧45 | ≧30 | ≧45 |
Insertion Loss (dB) | ≦2.3 | ≦3.5 | ≦0.8 | ≦1.0 |
Extinction Ratio (dB) | ≧20 | ≧20/23 | ||
Return Loss (dB) | ≧50 | |||
Power Handing (mW) | ≦300 | ≦500 | ||
Operating Temperature (℃) | -5∽+70 | |||
Storage Temperature (℃) | -40∽+85 | |||
Fiber Type | PM for Com and Pass port, PM or SM for Pump port | |||
Package Dimensions (mm) | ø5.5xL35 | |||
5．Order Information:
Stage | Operating Wavelength | Fiber Type | Fiber Length | Connector |
S= Single Stage D= Dual Stage | 9815= T1550/980 etc | 1=SMF-28E | 0=250 um 1=900um 2=2m 3=3m 4=others | 0=None |
