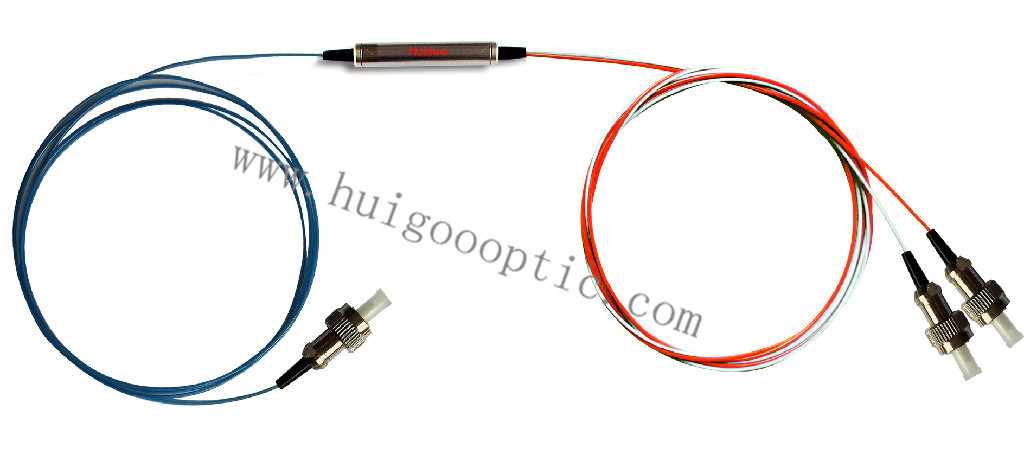

Optical Circulator  Fiber Optic Circulators


Descriptions:

      Optical circulator is belongs to a kind of optical passive components, its basic function is to realize the positive transfer optical signal, and inhibit reverse light.

Features

Low Insertion Loss

High Isolation

Low PDL

Wide Operating Wavelength

High Reliability and Stability

Very Small Package Size

Applications

OFA

MAN

Optical Application

Dispersion Compensation

Specifications

Parameter

Grade P

Grade A

Port Configuration

Port 1 to Port2 to Port 3

Channel Wavelength (nm)

1310±30 or 1550±30 or 1585±30

IL(dB)

typical

0.6

0.8

maximum

0.8

1.0

Max. Isolation (dB)

≧50

Min. Isolation (dB)

≧40

Crosstalk (dB)

≧50

Polarization Dependent Loss(dB)

≦0.15

Polarization Mode Dispersion(ps)

≦0.1

RL(dB)

≧50

Power Handling(mW)

300

Operating Temperature(℃)

0∽+70

Storage Temperature(℃)

-40∽+85

Dimension(mm)

Ø5.5 x L67



Order Information::

Port

Operating Wavelength

Grade

Pigtail Type

Fiber Length

Connector

3=3 Port

4=4 Port

13=1310nm
15=1550nm
16=1585nm

S= Special

P=Grade P

A= Grade A

1=250um

2=900um tube

1=1 m
2=2 m

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

Optical Circulator
