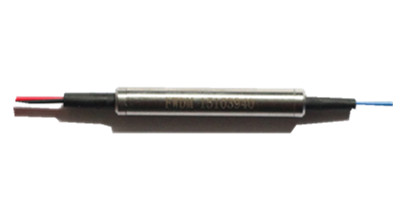

Wavelength Division Multiplexer
1．Description：
FTTH is a single Fiber To Home directly. Technical characteristics of the FTTH is the not only provide greater bandwidth, and enhance the network of data format, rate, wavelength and protocol transparency, loosened the requirements for environmental conditions and power supply, etc, to simplify the maintenance and installation.
2．Features：
Low Insertion Loss
High Channel Isolation
Low Return Loss
High Reliability and Stability
3．Applications：
EDFA
FTTH
CATV System
WDM System
4．Specifications：
Parameter | FTTH | ||
Transmission Operating Wavelength (nm) | 1550+/-10 | ||
Reflection Operating Wavelength (nm) | 1310±50/1490+/-10 | ||
IL (dB) | Reflection | ≤0.8 | |
Transmission | ≤0.8 | ||
IL Flatness (dB) | < 0.3 | ||
Isolation（dB） | Reflection | > 45 | |
Transmission | > 45 | ||
Directionality（dB） | >55 | ||
RL （dB） | > 50 | ||
PDL(dB) | <0.1 | ||
Power Handling（mW） | 300 | ||
Operating Temperature (℃) | 0 ~ +70 | ||
Storage Temperature (℃) | -40 ~ +85 | ||
Package Dimension (mm) | Ф5.5 × L34 (L38 for 900um Jacket) | ||
5．Order Information:
SFTTH | Operating Wavelength | Fiber Type | Fiber Length | Connector |
HWDM | 15=1550 Transmission /1310&1490 Reflection 34=1310&1490 Transmission /1550 Reflection | 1=Bare Fiber | 1=1 Meter |
