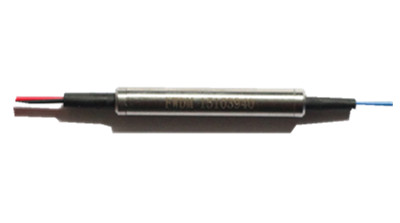

3 Ports FWDM Multiplexers
HuiGoo's provide 3 ports FWDM with low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
Fiberoptic Instruments
Performance Specifications
Parameter | FWDM 5/4 | FWDM 61/5 | FWDM 5/9 | |
Pass Band Wavelength Range（nm） | 1530~1565 | 1600~1670 | 1525~1600 | |
Reflect Band Wavelength Range（nm） | 1450~1490 | 1260~1580 | 965~1000 | |
Insertion Loss（dB） | Reflect Channel | ≤0.5 | ≤0.6 | ≤0.7 |
Pass Channel | ≤0.6 | ≤0.8 | ≤0.9 | |
Insertion Loss Variation（dB） | less than <0.3 | |||
Isolation @Add/Drop Channel（dB） | Reflect Channel | >15 | >15 | >15 |
Pass Channel | >25 | >35 | >30 | |
Inertion Loss Temperature Sensitivity(dB/℃) | less than 0.005 | |||
Polarization Dependent Loss（dB） | less than 0.1 | |||
Polarization Mode Dispersion（ps） | less than 0.1 | |||
Directivity (dB) (Input to add, Output to drop, add to drop（dB） | >50 | |||
Return Loss（dB） | >50 | |||
Maximum Power Handling（mW） | 500 | |||
Opterating Temperature (℃) | -20~+70 | |||
Storage Temperature(℃) | -40~+85 | |||
Fiber Type | Corning SMF-28e fiber | Corning HI 1060 fiber at Common & Reflection port, SMF-28e fiber at | ||
Package Dimention(mm) | Φ5.5x34,Φ5.5x38 (900um Loose tube) | |||
1、Above specifications are for devices without connector.
2、Specifications may change without notice.
