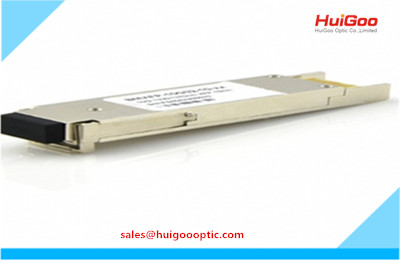

10Gb/s XFP Optical Transceiver
HotPluggable, Duplex LC, +3.3V, 850nm VCSEL/PIN, Multi mode,300m, 0~70°C
XP-10G-SR inter-converting the 10Gb/sserial electrical data stream with the 10Gb/s optical signal, complies with the current XFP Multi-Source Agreement (MSA) Specification. It provides Digital diagnostics functions viaa 2-wire serial interface. The high-performance 850nm VCSEL transmitter andhigh-sensitivity PIN receiver provide superior performance for Ethernet applicationsup to link length of 300m on Multi-mode fiber.
Features:
² Supports 9.95 to 11.3Gb/s bit rates
² Hot pluggable 30 pin connector
² Duplex LC connector
² 850nm VCSEL transmitter, PIN photo-detector
² MMF links up to 300m
² 2-wire interface for management and diagnosticmonitor
² Compliant with XFP MSA
² XFI electrical interface with AC coupling
² Single power supply voltages : +3.3V
² Power dissipation: <1.5w< p="">
² Temperature range 0°C to 70°C
² RoHS Compliant Part
Applications:
² 10GBASE-SR/SW Ethernet
² 1200-Mx-SN-I 10G Fibre Channel
² Other optical links
Ordering Information:
Part Number | Data Rate | Distance | Wavelength | Laser | Fiber | DDM | Connector |
XP-10G-SR | 10Gb/s | 300m | 850nm | VCSEL/PIN | MM | Yes | Duplex LC |
10Gb XFP Transceiver Duplex LC Multi modepdf
