Polarization Maintaining Optic Isolator

  • Category: Optical Isolator
  • Source: Polarization Maintaining Isolator
  • Driver: HuiGoo Optic Co.,Limited
  • Housing: Polarization Maintaining Isolator

Inquiry now

or

Send email

We highly appreciate your feedback.
TEL: +86-013510362835
E-mail: sales@huigoooptic.com

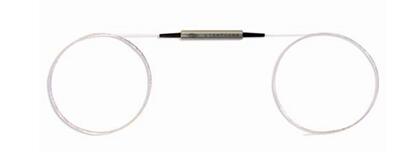

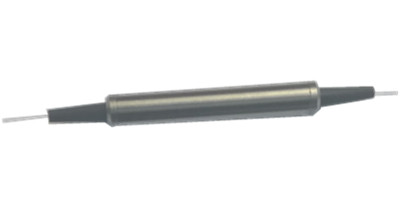

Polarization Maintaining Isolator 980/1064/1310/1480/1550nm

1. Description:

The PMISO is a micro-optic device built with an input and an output PM fiber.It is characterized with low insertion loss,high extinction ratio,high isolator,high return loss and excellent envionment stability and reliability. It is widely used in EDFA, Raman amplifer,fiber lasers,optical fiber sensors and instrumentation.

2.Features:

High Isolation

Low insertion loss

High Return Loss

High Extinction Ratio

Excellent Envionment Stability and Reliability.

3.Applications:

Fiber Laser

Fiber Sensor

EDFA

Instrumentation

Optical Amplifier

 4.Specifications:



Parameter

PMISO

Single stage

Dual Stage

Single stage

Dual Stage

Center Wavelength(nm)

1064

1310,1480,1550

Operating Wavelength Accuracy(nm)

±5

±15

Isolation(dB)

≧30

≧45

≧30

≧45

Insertion Loss(dB)

≦2.0

≦3.0

≦0.6

≦0.8

Extinction Ratio(dB)

≧20/23

≧20/23

Reture Loss(dB)

≧50

≧50

Hanging Power(mW)

≦300

≦500

Operating Temperature()

-5∽+50

-5∽+70

Storage Temperature()

-40∽+85

Fiber Type

PM Fiber or Specify

Package Dimensions(mm)

Φ5.5×L35

5.Order  Information

Stage

Operating Wavelength

Fiber Type

Fiber length

Connector

S=SingleStage

D=Dual Stage

1310,1550etc

1=250um

2=900um

3=3mm

4=others

0=250um

1=900um

0=Oone

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST 6=LC

Polarization Maintaining Isolator
