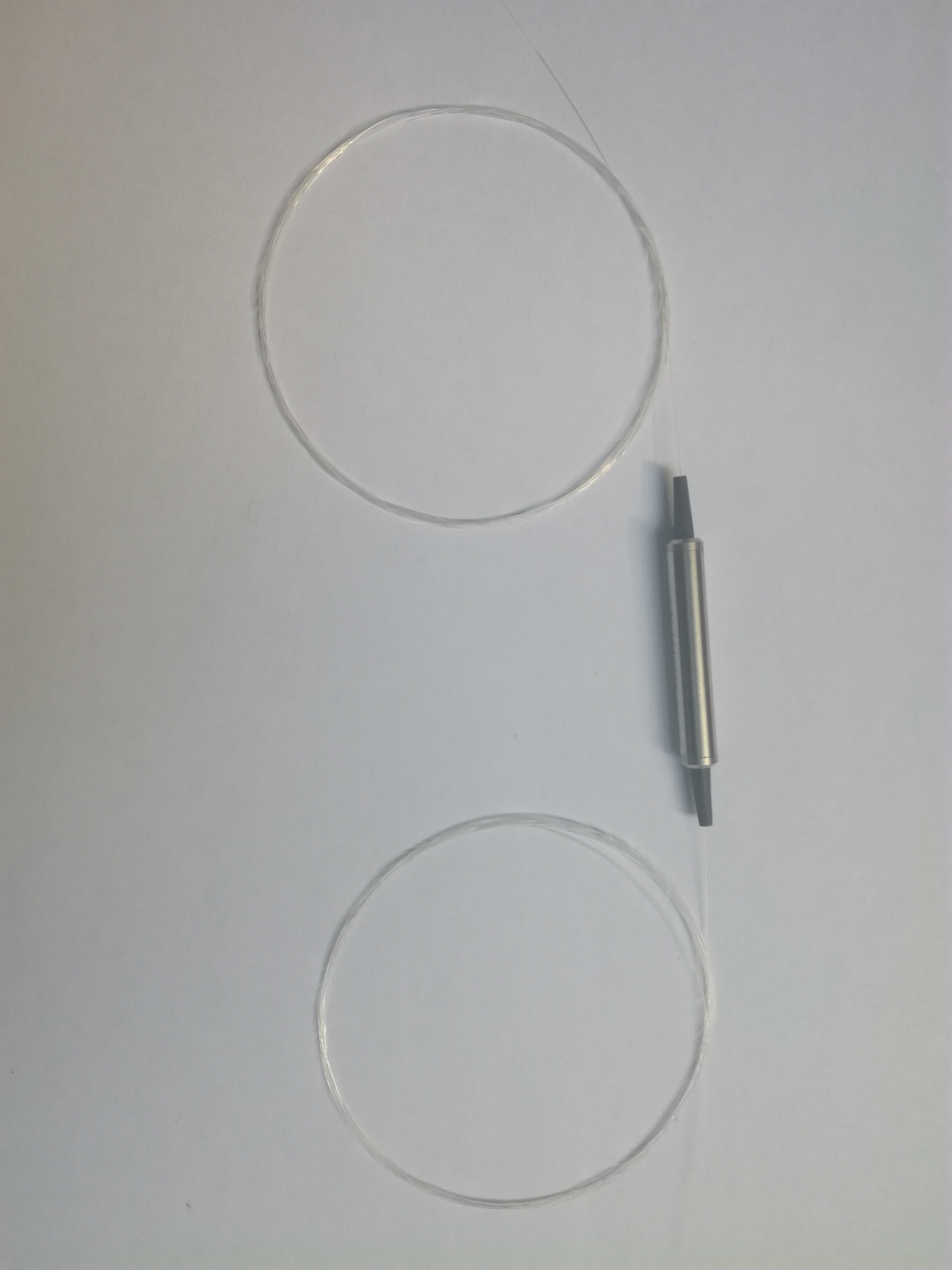

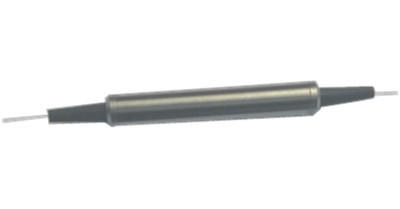

850,980,1060nm Polarization Insensitive Optical Isolator optical components
Features
High Isolation
Low Insertion Loss
Low PDL
High Stability and High Reliability
Cost Effective
Applications
Fiberoptic Amplifiers
Pump Laser Source
Fiberoptic Sensor
Test and Measurement
Instrumentation
Specifications
Parameter | Specification |
Operating Wavelength (nm) | 850±20,980±20,1060±20 |
Typical Isolation (dB) | 25 |
Minimum Isolation (dB) | 23 |
Typical Insertion (dB) | 1.0 |
Maximum Insertion Loss (dB) | 1.2 |
Return Loss (dB) | 50 |
PDL (dB) | 0.2 |
Operating Temperature (℃) | 0 ～ +50 |
Storage Temperature (℃) | -40 ～ +85 |
Fiber type | HI 780 Fiber or customer |
Package Dimension (nm) | L52 x W28 x H27 |
Power Handling (mW) | 300 |
Specifications may change without notice.
Above specification are for device without connector.
Ordering information
IS | XX | X | X | X | XX |
| Wavelength | Pigtail Style | Fiber Length | Fiber Type | In/Out Connector |
85=850nm 98=980nm 10=1060nm | 1=Bare Fiber 2=900um jacket | 1=0.25m 2=0.5m 3=1.0m S=Customer Length | 1=HI 780 2=HI 980 3=HI 1060 | 0=none 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Special |
