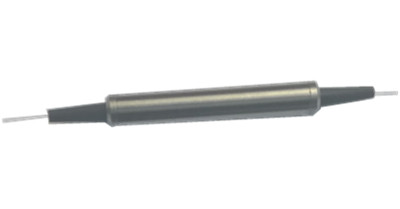

High Power Isolator 850nm/1064nm
1． Description：
The high power isolator series includes in-line type,beam expandde isolator ,fiber in and free space out isolator and free space isolator etc. They are characterized with low insertion loss,high isolation,high power handing,high returm loss,excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applocations.
2．Features：
High Isolation
Low Insertion Loss
PM & Non-PM are Available
High Reliability and Stability
3．Applications：
PM Fiber Laser
PM Fiber Amplifier
Fiber Sensor
4．Specifications：
Parameter | Grade P | Grade A |
Operating Wavelength (nm) | 850 | |
Isolation @ Passband (dB) | ≥32 | ≥30 |
Isolation (dB) | ≥28 | ≥25 |
Insertion Loss @ Passband (dB) | 0.8 | 1.0 |
Insertion Loss (dB) | ≤1.0 | ≤1.2 |
Operating Wavelength Range (nm) | ±10 | ±10 |
Operating Temperature (℃) | -20 ～ + 70 | |
Storage Temperature (℃) | -40 ～ +85 | |
Fiber Type | Corning Clearcurve OM3 | |
Fiber Length (m) | 1 Meter Each End | |
Package Dimensions (mm) | 34×100 | |
Handing Power(W) | ≤2 | |
