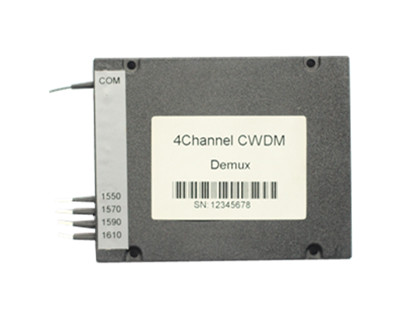

CWDM Mux/Demux in LGX Box 4,8,16,18-Channel
HuiGoo's Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Access Network
Applications
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Acess Network
Performance Specifications
Parameter | 4 Channel | 8 Channel | 16 Channel | ||||
Mux | Demux | Mux | Demux | Mux | Demux | ||
Channel Wavelength (nm) | 1270~1610 | ||||||
Center wavelength Accuracy (nm) | ±0.5 | ||||||
Channel Spacing (nm) | 20 | ||||||
Channel Passband (@-0.5dB bandwidth (nm) | >13 | ||||||
Insertion Loss (dB) | ≤1.6 | ≤2.5 | ≤4.5 | ||||
Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
Channel Ripple (dB) | 0.3 | ||||||
Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||||
Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||
Polarization Dependent Loss (dB) | <0.1 | ||||||
Polarization Mode Dispersion | <0.1 | ||||||
Directivity (dB) | >50 | ||||||
Return Loss （dB） | >45 | ||||||
Maximum Power Handling (mW) | 300 | ||||||
Opterating Temperature (℃) | -5~+75 | ||||||
Storage Temperature (℃) | -40~85 | ||||||
Package dimension (mm) | L100 x W80 x H10 | L142 x W102 x H14.5 | |||||
Specification may change without notice.
Above specification are for device without connector.
Ordering Information
CWDM | X | XX | X | XX | X | X | XX |
Channel Spacing | Number of Channels | Configuration | 1st Channel | Fiber Type | Fiber Length | In/Out Connector | |
C=CWDM Grid |
04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel |
M=Mux D=Demux O=OADM |
27=1270nm …… 47=1470nm 49=1490nm …… 61=1610nm SS=special |
1=Bare fiber 2=900um loose tube 3=2mmCable 4=3mmCable |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
If you are interested for our products, pls feel free to contact us. TEL:+86-013510362835. Email: sales@huigoooptic.com
