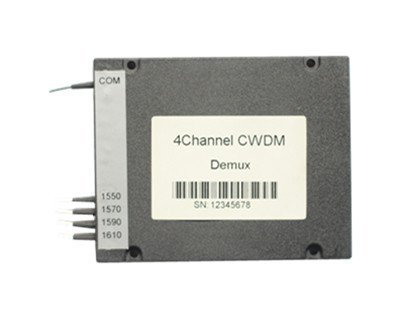

                             CWDM Component Fiber Optic Multiplexing Mux/Demux mode
Description

CWDM component is based on proven thin-film technology, it can be used in multi-channel CWDM module and other optical system. And CWDM module has been widely used in CATV, FTTH etc.

Features
  • -Wide pass band
  • -Low insertion loss
  • -Low PDL
  • -High Channel isolation
  • -High stability and reliability

Application
  • -CWDM module
  • -CATV
  • -FTTH
  • -Security & Protection System

Parameter

Parameter (@23℃)Specification
Center wavelength（nm）1271, 1291, 1311, 1331, 1351, 1371, 1391, 1411,1431 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611
Max. Insertion Loss (dB)Transmission0.6
Reflection0.5 (Half band) / 0.6 (Full band)
Channel Space (nm)20
Channel band wide (nm)λc ± 6.5
Min. Isolation (dB)Adjacent channel30
Non-adjacent channel40
Reflection channel15
Max. PDL (dB)0.15
Min. Directivity (dB)55
Min. Return Loss (dB )50
Max. PMD (ps)0.1
Thermal Stability (dB/℃)0.005
Max. Power handling (mW)500
Operating Temperature（℃）-40~85
Storage Temperature（℃）-40~100
Packaging Size（mm）(D*L)Ф5.5× L34
Notes:
1. Above specification: without connector.
2. Transmission band and Reflection band Wavelength:Follow customer request.

Product order information

CWDM—XX—XX—XXXX—XXXX—XX—XX—XX-XX
 Product Type:
MU—Mux
DM—Dmux		Port Type:
12—1*2
14—1*4
18—1*8		Transmission Wave Length: 1511, 1531…Reflection Wave Length: 1460~1620Package Size: 00— StandardFiber Package:
A—Bare fiber
B—900um loose tube		Fiber Length: 00—Special
05—0.5m
10—1m
15—1.5m
Connector: 0—None
1—FC/PC
2—FC/APC
3—SC/PC
4—SC/APC
5—LC/PC
6—LC/APC
7—ST

If you are interested for our products, pls feel free to contact us. TEL:+86-013510362835. Email: sales@huigoooptic.com
